The Ultimate Guide to Anodized Aluminum Finish: Colors, Durability, and Aesthetics

As experts in surface finishing, we've seen firsthand how the right treatment can transform a product. Today, we're diving deep into the world of anodized aluminum finish – a process beloved for its unique blend of durability, aesthetic appeal, and functionality. Join us as we explore how this remarkable finish elevates aluminum, making it a preferred material across countless industries.

Understanding the Anodized Aluminum Finish: What It Is and How It Works

Defining the Anodized Aluminum Finish

At its core, an anodized aluminum finish is the result of an electrochemical process that converts the metal's surface into a durable, corrosion-resistant, anodic oxide finish. Unlike paint or plating that is applied to the surface, this oxide layer is fully integrated with the underlying aluminum substrate. This means it cannot chip, flake, or peel, making it exceptionally robust. The process essentially enhances and thickens the naturally occurring protective oxide film that forms on aluminum when exposed to the atmosphere. This controlled oxidation creates a much harder and more durable surface, with a hardness similar to that of a ruby or sapphire.

The resulting anodic oxide structure is highly ordered and porous, which is a key characteristic that allows for secondary processes like coloring and sealing. This unique structure, grown directly from the aluminum itself, makes the finish incredibly resilient and suitable for a vast range of products across commercial, industrial, and consumer applications. The process of Anodizing transforms standard aluminum into a high-performance material that combines both aesthetic versatility and superior physical properties.

The Electrochemical Process Behind the Anodized Aluminum Finish

The creation of an anodized aluminum finish is a fascinating and highly controlled electrochemical process. It begins by immersing the aluminum part into an acid electrolyte bath, most commonly sulfuric acid. Inside the anodizing tank, the aluminum part is set up to act as the anode (the positive electrode), while a cathode (a negative electrode), typically made of lead or aluminum, is also placed in the bath.

When a direct electrical current (DC) is passed through this electrolytic cell, a chemical reaction is initiated. The electric current causes oxygen ions from the electrolyte to be released and migrate to the surface of the aluminum anode. These oxygen ions then combine with the aluminum atoms on the surface, forming a layer of aluminum oxide (Al₂O₃).

There's a delicate balance at play during this reaction. As the aluminum oxide layer forms, the acidic electrolyte simultaneously works to dissolve it. This dissolution process is what creates the highly ordered and porous structure unique to anodized coatings. The final thickness and porosity of the oxide layer are determined by carefully controlling several factors, including the chemical concentration of the electrolyte, temperature, current density, and immersion time. The result is a duplex structure: a thin, dense barrier layer right next to the aluminum, and a much thicker, porous outer layer that is ideal for absorbing dyes and subsequent sealing.

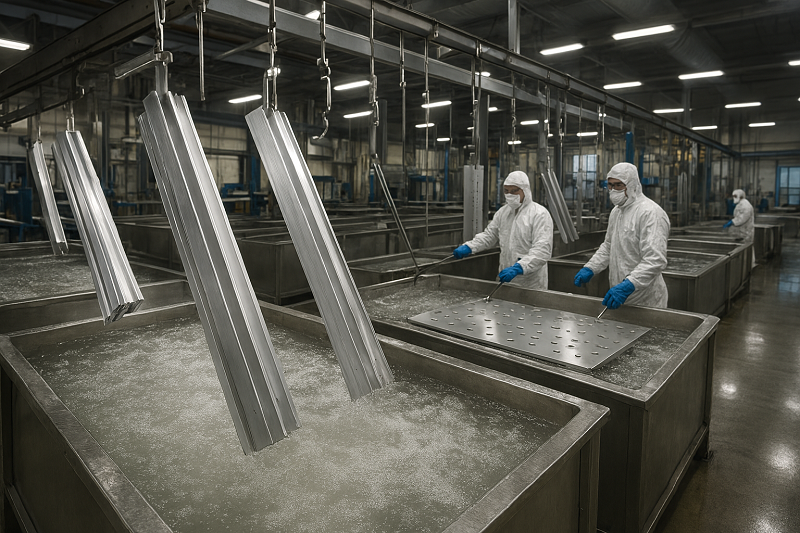

Crucial Pre-Treatment Steps for an Optimal Anodized Aluminum Finish

Achieving a flawless, high-quality anodized aluminum finish is impossible without meticulous pre-treatment. This initial phase, often called the cleaning or preparation phase, is critical because the cleanliness and uniformity of the part's surface directly impact the final outcome. Any contaminants like dirt, oils, or surface imperfections can lead to defects such as uneven coating or spotting.

The pre-treatment process typically involves a sequence of steps:

1. Cleaning and Degreasing: The first step is to remove all surface contaminants. This is usually done by immersing the aluminum part in a non-etching, alkaline detergent bath, often heated to around 145°F (63°C). This process effectively removes grease, machine oils, and general grime left over from manufacturing and handling.
2. Rinsing: After each chemical step, the part is thoroughly rinsed, often with deionized water, to remove any residual chemical agents. This prevents contamination between different stages of the process.
3. Etching: To create a uniform, matte surface and remove minor imperfections like die lines, the aluminum is submerged in an etching solution, typically a caustic soda (sodium hydroxide) bath. This step chemically removes a very thin layer of aluminum, preparing the surface for a consistent anodic film.
4. Desmutting: The etching process can leave a residue of alloying elements on the surface, known as "smut." To remove this, the part undergoes a desmutting step, which involves dipping it in a strong acidic solution, often nitric acid-based. This ensures the surface is perfectly clean and ready for the anodizing tank.

By carefully executing these pre-treatment steps, a uniform and pristine surface is created, which is essential for the formation of a high-quality, consistent, and durable anodized layer.

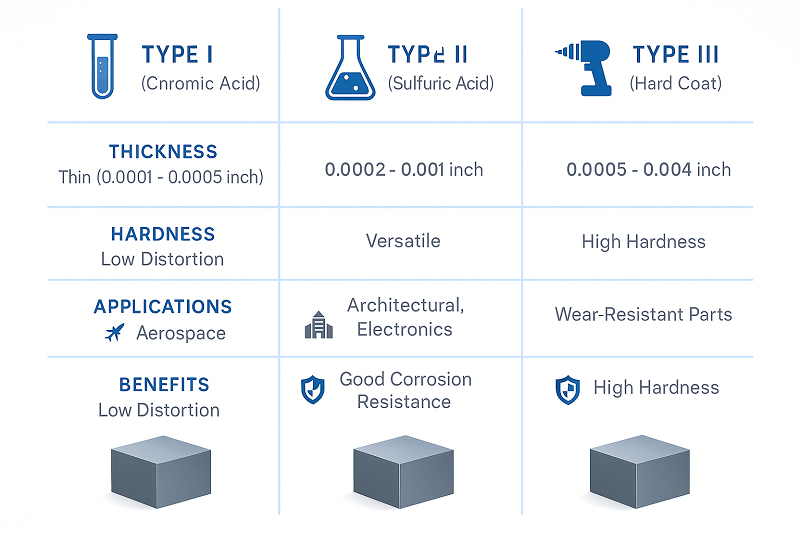

Exploring the Types of Anodized Aluminum Finish and Their Applications

Anodizing is not a one-size-fits-all process. Different methods have been developed to produce anodic coatings with specific properties tailored for various applications. The most common types are classified by military specification (MIL-A-8625) as Type I, Type II, and Type III. Each type offers a unique combination of thickness, hardness, and corrosion resistance.

Type I Anodized Aluminum Finish: Chromic Acid Anodizing

Type I anodizing, also known as chromic acid anodizing, was the first anodizing technique developed. It utilizes a chromic acid-based electrolyte to produce a very thin oxide film, typically ranging from 0.00002 to 0.0001 inches (0.5 to 2.5 micrometers). One of its primary advantages is that it causes minimal dimensional change, making it ideal for parts with tight tolerances.

Key Properties and Applications:

• Excellent Corrosion Resistance: Despite its thinness, the coating provides robust protection against atmospheric and saltwater corrosion, often required to pass a 336-hour salt spray test.
• Fatigue Strength: It has a negligible effect on the fatigue strength of the aluminum, which is crucial for components under cyclical stress.
• Paint and Adhesive Base: The surface is chemically active and provides an excellent base for painting and adhesive bonding.
• Applications: Due to these properties, Type I is predominantly used in the aerospace and defense industries for flight-critical components like landing gear, aircraft fuselage skins, and precision-machined parts.

However, the use of chromic acid is under increasing regulatory scrutiny due to environmental and health concerns associated with hexavalent chromium.

Type II Anodized Aluminum Finish: Sulfuric Acid Anodizing

Type II, or sulfuric acid anodizing, is the most common and versatile anodizing process. It uses a sulfuric acid electrolyte to produce a thicker and more durable coating than Type I, with thicknesses typically ranging from 0.0001 to 0.001 inches (2.5 to 25.4 micrometers).

Key Properties and Applications:

• Good Wear and Corrosion Resistance: It offers good protection against abrasion and corrosion, suitable for a wide array of environments.
• Excellent for Coloring: The porous nature of the Type II coating is ideal for absorbing dyes, allowing for a vast spectrum of decorative colors. This makes it popular for consumer electronics, architectural elements, automotive trim, and sporting goods.
• Versatility: This process can be applied to a wide range of aluminum alloys (from the 1000 to 7000 series), further enhancing its utility.
• Common Uses: Applications are extensive and include military weapons, optical components, computer enclosures, medical devices, and general mechanical hardware.

Type II anodizing strikes an excellent balance between performance, cost, and aesthetics, making it the go-to choice for the majority of commercial and industrial applications.

Type III Anodized Aluminum Finish: Hard Coat Anodizing

Type III anodizing, commonly known as hard coat or hard anodizing, is engineered for maximum durability. This process uses a sulfuric acid electrolyte like Type II, but operates at much colder temperatures (around 32-35°F or 0-2°C) and higher voltages. This creates an exceptionally thick, dense, and hard oxide layer.

Key Properties and Applications:

• Superior Hardness and Wear Resistance: The hard coat finish is significantly harder than standard anodizing, with Rockwell hardness values reaching C60-C70, and can be up to 10 times more durable than unanodized aluminum. It is ideal for parts subject to extreme wear, friction, or abrasive environments.
• Thicker Coating: The thickness typically ranges from 0.0005 to 0.003 inches (12.7 to 76 micrometers), with about 50% penetrating into the substrate and 50% building up on the surface.
• Enhanced Corrosion Resistance: When sealed, it can pass a 1000-hour salt spray test, offering superior protection.
• Functional Applications: It is widely used for high-performance applications such as pistons, gears, valve bodies, sliding parts, military equipment, and heavy-duty cookware.

Due to the density of the layer, coloring options are limited, with the finish naturally appearing in shades of gray, bronze, or black depending on the alloy.

Beyond Aluminum: Anodized Finish for Other Metals

While aluminum is the most commonly anodized material, the process is not exclusive to it. Other nonferrous metals can also be anodized to enhance their surface properties, although the process and results vary.

• Titanium: Anodizing titanium is often used in the medical and aerospace industries. Unlike aluminum, the color of anodized titanium is not a result of dyes but an interference effect created by the thickness of the oxide layer. Varying the voltage produces a spectrum of vibrant colors. The process improves corrosion resistance and provides a biocompatible surface for medical implants.
• Magnesium: Magnesium can be anodized to improve its corrosion resistance, which is naturally quite poor. The resulting oxide layer is typically not as hard or porous as an aluminum coating, so it is often used as a primer for subsequent painting rather than a final decorative finish.
• Other Metals: Metals like zinc, niobium, and tantalum can also be anodized, each for specialized applications. For example, anodized niobium is used in jewelry and superconductors, while anodized tantalum is used to make capacitors.

Each metal reacts differently to the electrochemical process, resulting in unique oxide layer characteristics and a distinct set of applications.

The Spectrum of Colors: Aesthetic Appeal of an Anodized Aluminum Finish

One of the most celebrated attributes of anodized aluminum is the ability to introduce a wide array of vibrant, durable colors. This aesthetic versatility, combined with the finish's functional benefits, makes it a top choice for architects, product designers, and engineers. The color isn't a superficial coating like paint; it is integrated into the metal's surface, ensuring it won't chip or peel.

How Colors are Integrated into the Anodized Aluminum Finish

The porous structure of the anodic oxide layer, especially that created by Type II sulfuric acid anodizing, is the key to adding color. Several methods are used to introduce color into these microscopic pores before they are sealed.

• Dip Dyeing (Organic Coloring): This is the most common method for achieving a wide range of vibrant colors. After the anodizing step, the part is immersed in a tank containing a dissolved organic dye. The porous oxide layer absorbs the dye, and the intensity of the color is controlled by factors like dye concentration, temperature, and immersion time. While this method offers an extensive color palette, organic dyes generally have lower UV resistance compared to other methods and can fade with prolonged sun exposure.
• Electrolytic Coloring (Two-Step): This process is renowned for producing very durable, lightfast colors. After anodizing, the part is immersed in a second bath containing inorganic metal salts (such as those of tin, cobalt, or nickel). An AC current is applied, which deposits metal particles into the base of the pores. The color is created by the optical effect of light scattering off these deposited metal particles. The range of colors is typically limited to shades of bronze, black, gold, and champagne, but they are exceptionally resistant to UV fading, making them ideal for architectural applications.
• Integral Coloring: This one-step process combines anodizing and coloring simultaneously in a special electrolyte. It produces very hard, abrasion-resistant coatings in shades of bronze and black.
• Interference Coloring: A more advanced technique that modifies the pore structure at its base after the initial anodizing. This allows for the deposition of metals that create color through optical interference effects, producing a range of lightfast colors including blue, green, and red.

After the coloring stage, the part undergoes a sealing process, which closes the tops of the pores, locking the color in and maximizing corrosion resistance.

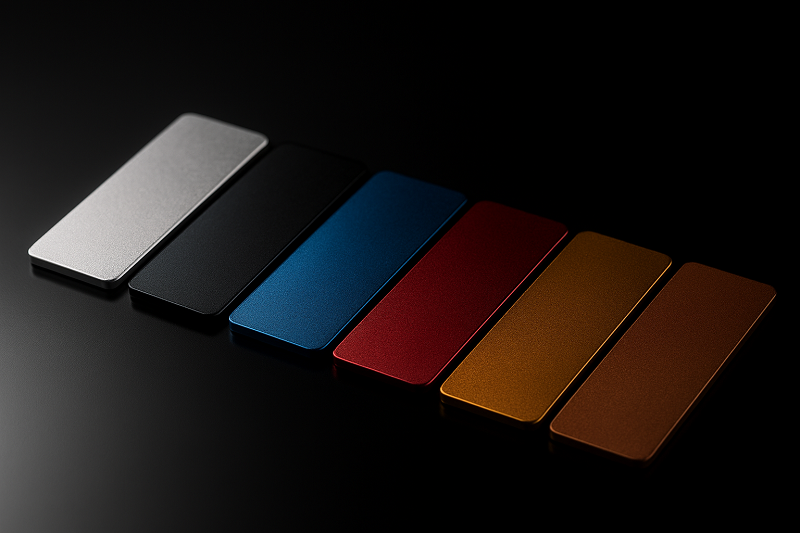

Popular Colors and Their Applications in Anodized Aluminum Finish

The ability to achieve a broad spectrum of colors allows anodized aluminum to fit into countless design schemes and functional requirements. Each color often finds a niche in specific industries.

Color	Common Applications	Aesthetic/Functional Notes
Clear/Silver	Architectural elements, electronics, automotive components	Maintains the natural metallic look of aluminum while adding significant durability and corrosion resistance. A versatile and timeless choice.
Black	Electronics (laptops, phones), automotive trim, military hardware, industrial equipment	A classic and popular choice that provides a sleek, modern, and professional appearance. Black finishes are generally very UV resistant.
Bronze/Gold	Architectural facades, window frames, decorative hardware, jewelry	Offer a warm, luxurious, and sophisticated look. These colors are often achieved through electrolytic coloring, ensuring excellent lightfastness for outdoor use.
Blue	Consumer electronics, sporting goods, medical device components, custom automotive parts	A vibrant and eye-catching color available in many shades. It adds a distinctive, modern touch to products.
Red	Automotive accents, emergency equipment, fashion accessories, branding components	A bold, high-impact color used to draw attention or make a strong design statement. Like blue, it can be susceptible to UV fading over time.
Green	Architectural details, eco-friendly products, medical parts	Provides a natural and refreshing appearance, sometimes used to evoke a sense of sustainability.

Factors Influencing the Final Color of an Anodized Aluminum Finish

Achieving a consistent, specific color across different parts or batches can be challenging, as it's part science and part art. Several variables can significantly impact the final hue and appearance of an anodized finish.

• Aluminum Alloy Composition: The specific alloying elements in the aluminum (such as copper, silicon, or manganese) react differently during anodizing and can subtly or significantly alter the final color. For example, high-silicon alloys tend to produce a grayish tint. That's why the 6000 series alloys, like 6061 and 6063, are popular choices as they anodize well and produce consistent results.
• Anodizing Process Parameters: The thickness of the oxide layer, which is governed by the anodizing time, current density, and electrolyte temperature, directly affects how dye is absorbed. Thicker coatings can produce darker or more vibrant colors. Inconsistencies in these parameters will lead to color variation.
• Surface Finish: The initial texture of the aluminum—whether it's been polished to a bright, specular finish or etched to a matte finish—will change how light reflects off the surface, thereby influencing the perceived color.
• Dyeing Process: The concentration, temperature, and age of the dye bath, as well as the immersion time, are critical. Parts that are dipped last in a batch may have lighter hues as the dye concentration depletes.
• Inconsistency Between Batches: It can be difficult to perfectly replicate all process parameters from one batch to the next, which may lead to slight color variations. For assemblies with multiple components, anodizing all parts in the same batch when possible is a best practice to ensure uniformity.
• Sealing Method: The sealing process, while crucial for durability, can also slightly alter the final appearance of the color.

For projects where color consistency is paramount, communicating closely with the finishing partner and providing color standards or samples is essential.

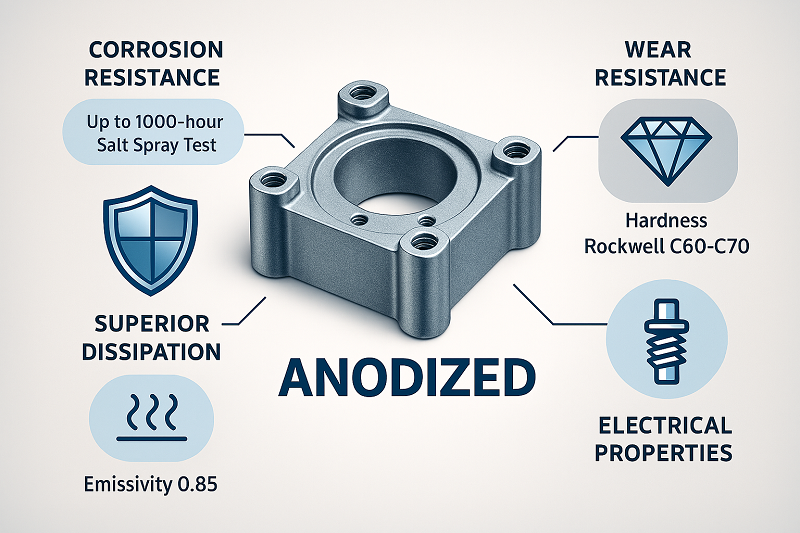

Unmatched Durability: Performance Benefits of an Anodized Aluminum Finish

While the aesthetic possibilities of anodized aluminum are impressive, the primary reason engineers and manufacturers choose this finish is for its dramatic improvement in performance and durability. Anodizing transforms the surface of aluminum into a ceramic-like oxide layer that is integrated with the metal, providing a host of functional benefits outlined in military specifications like MIL-A-8625.

Enhanced Corrosion Resistance in Anodized Aluminum Finish

One of the most significant advantages of anodizing is the substantial improvement in corrosion resistance. While untreated aluminum naturally forms a thin, passive oxide layer that offers some protection, this layer is easily damaged. Anodizing creates a much thicker, denser, and more controlled oxide layer that acts as a robust barrier against environmental hazards.

This protective film is chemically stable and non-reactive, shielding the underlying aluminum from moisture, atmospheric pollutants, salt spray, and various chemicals. The level of protection is directly related to the thickness of the anodic coating. Rigorous testing, such as the neutral salt spray test (ASTM B117), demonstrates this enhanced durability. While a standard Type II anodized finish can often withstand over 336 hours of salt spray exposure, a thicker Type III hard coat can typically pass a 1000-hour test with little to no damage. This makes anodized aluminum an ideal choice for components used in marine, aerospace, and harsh industrial applications where preventing corrosion is critical for safety and longevity.

Superior Wear Resistance and Hardness of an Anodized Aluminum Finish

The anodizing process converts the aluminum surface into aluminum oxide, which is an extremely hard ceramic material. This results in a surface with vastly improved hardness and resistance to wear, scratches, and abrasion.

• Hardness: The hardness of an anodized coating can be significantly greater than that of the base aluminum. A Type III hard coat, in particular, creates a surface with a hardness of 60-70 on the Rockwell C scale, which is harder than many types of tool steel. This ceramic-like hardness protects the relatively soft aluminum substrate from nicks, scratches, and physical damage.
• Wear Resistance: Because of its increased hardness, an anodized surface is incredibly resistant to wear from friction and repetitive motion. Studies show that hard coat anodized surfaces can be more than 10 times more wear-resistant than ordinary anodized aluminum and can surpass the performance of steel alloys and chemical nickel plating in abrasive environments. This exceptional durability is why Type III anodizing is specified for high-wear mechanical components like pistons, hydraulic cylinders, gears, and sliding parts.

This remarkable combination of a lightweight core with a super-hard surface makes anodized aluminum a uniquely advantageous material in many engineering applications.

Other Functional Advantages of an Anodized Aluminum Finish

Beyond corrosion and wear resistance, the anodized finish imparts several other valuable properties to aluminum components.

• Improved Heat Dissipation: Anodizing significantly enhances the surface's ability to radiate heat, a property known as emissivity. While bare, polished aluminum is a poor radiator of heat (emissivity of ~0.05), an anodized surface can have an emissivity of around 0.85. This dramatic improvement allows anodized aluminum heatsinks to dissipate thermal energy much more effectively, especially in passive cooling systems, improving the performance and reliability of electronic components.
• Excellent Electrical Insulation: Aluminum oxide is a very effective electrical insulator. Unlike bare aluminum, which is highly conductive, the anodized layer is dielectric and can withstand significant voltage. This property is crucial in electronics enclosures and mounting brackets, where it can prevent accidental short circuits and improve system safety. The breakdown voltage increases with the thickness of the anodic film.
• Better Adhesion for Secondary Finishes: The porous structure of the unsealed anodic layer provides an excellent "toothed" surface for the adhesion of paints, primers, and glues. This makes anodizing a superior pre-treatment for painting compared to simply preparing the bare metal, ensuring a more durable and long-lasting bond.
• Maintains Material Properties: Because anodizing is a surface conversion process and not a high-heat treatment, it does not warp or change the fundamental strength properties of the aluminum substrate.

These multifaceted benefits demonstrate that anodizing is not merely a cosmetic treatment but a critical engineering process that elevates the performance of aluminum parts across a wide spectrum of applications.

Anodized Aluminum Finish Versus Other Surface Treatments

When selecting a surface treatment for aluminum, it's essential to understand the alternatives to anodizing. Two of the most common alternatives are powder coating and electroplating. Each offers a different set of properties, and the right choice depends entirely on the specific requirements of the application, such as durability, appearance, and cost.

Anodized Aluminum Finish vs. Powder Coating

Powder coating is a process where a dry powder, typically a thermoset polymer, is applied to a metal surface electrostatically and then cured under heat. This creates a hard finish that is similar to a thick layer of paint.

Comparison Table: Anodizing vs. Powder Coating

Feature	Anodized Aluminum Finish	Powder Coating
Process	An electrochemical process that converts the aluminum surface into a hard, porous aluminum oxide layer. The finish is integral to the part.	An electrostatic process that applies a layer of polymer powder onto the surface, which is then melted to form a continuous film. The finish is an additive layer on top of the part.
Appearance	Provides a unique metallic sheen as the underlying metal's texture is preserved. Colors are translucent, giving a deep, rich appearance.	Creates an opaque, uniform finish that can be high gloss, matte, or textured. It effectively covers surface imperfections.
Durability & Hardness	The surface becomes exceptionally hard (especially Type III hard coat), offering superior scratch and wear resistance. Because it's integral to the metal, it cannot chip or peel.	The finish is tougher than conventional paint but is softer than an anodized surface. It can chip or scratch if subjected to sharp impacts or heavy abrasion.
Corrosion Resistance	Excellent corrosion resistance, as the oxide layer is a non-porous, chemically stable barrier. Often provides longer-lasting protection in harsh environments.	Good corrosion resistance, as the polymer layer seals the metal from moisture. However, if the coating is breached by a scratch, the underlying metal can begin to corrode.
Color Options & UV Resistance	Offers a variety of colors, but the palette can be more limited than powder coating. Electrolytically colored finishes have outstanding UV resistance, but organic dyes may fade over time with direct sun exposure.	Offers a nearly limitless range of colors and textures. Most powder coatings have very good UV resistance, making them suitable for outdoor applications.
Cost	Generally more expensive, especially for custom colors or Type III hard coat, due to the complexity of the process and energy requirements.	Often more cost-effective, particularly for large-scale projects and covering a wide variety of metals.
Environmental Impact	A water-based process with fewer volatile organic compounds (VOCs). The chemicals used require careful management and disposal.	An environmentally friendly process that produces very few VOCs and allows unused powder to be collected and reused, minimizing waste.

Verdict: Choose anodizing when you need superior abrasion resistance, a finish that won't chip or peel, and a premium metallic appearance. It's ideal for high-wear parts and architectural elements in harsh environments. Choose powder coating when you need a wide variety of opaque color options, want to cover surface imperfections, and are looking for a more cost-effective solution.

Anodized Aluminum Finish vs. Electroplating

Electroplating is a process that uses an electric current to deposit a thin layer of another metal (like chrome, nickel, or zinc) onto the surface of a conductive object. This is done to change the surface's properties, such as improving appearance, conductivity, or corrosion resistance.

Comparison Table: Anodizing vs. Electroplating

Feature	Anodized Aluminum Finish	Electroplating
Process	Converts the surface of the aluminum part into aluminum oxide. The finish is grown from the base metal.	Deposits a layer of a different metal onto the surface of the part. It is an additive process.
Adhesion	The anodic layer is integral to the substrate and is perfectly bonded, so it cannot peel, flake, or blister.	Adhesion depends heavily on surface preparation. If not done perfectly, the plated layer can be prone to peeling, flaking, or blistering over time.
Material Compatibility	Primarily used for nonferrous metals like aluminum, titanium, and magnesium.	Can be applied to a wide range of metals, including steel, copper, and brass, as well as some plastics.
Surface Properties	Creates a very hard, wear-resistant surface that is an excellent electrical insulator.	Can be used to create a variety of surface properties, depending on the metal being plated. It can enhance electrical conductivity (e.g., gold, copper plating) or provide a very hard, lubricious surface (e.g., hard chrome).
Corrosion Resistance	Generally provides superior and more consistent corrosion resistance because the protective layer is integrated with the metal.	Corrosion resistance is effective but depends heavily on the type and thickness of the plated metal. Any pinholes or cracks in the plating can lead to galvanic corrosion of the underlying substrate.
Appearance & Aesthetics	Provides a matte or satin finish with a deep, metallic luster. Offers various color options through dyeing.	Can produce a wide range of finishes from bright, mirror-like chrome to dull matte nickel. The appearance is that of the plated metal.
Dimensional Impact	Type I has minimal impact, while Types II and III have predictable dimensional growth that must be accounted for in precision parts.	Adds thickness to the part, which can be difficult to control uniformly on complex shapes, potentially affecting tight tolerances.
Environmental Impact	Generally considered more environmentally friendly, although some processes (like Type I chromic acid) use hazardous materials.	Often involves the use of hazardous chemicals, such as cyanide-based solutions, and generates toxic waste that requires strict management and disposal protocols.

Verdict: Choose anodizing for aluminum parts that require exceptional durability, integrated corrosion resistance, and a lightweight, non-conductive surface. It is ideal for aerospace, architectural, and high-wear mechanical applications. Choose electroplating when you need to coat materials like steel or brass, require an electrically conductive surface, or desire a specific metallic finish like bright chrome for decorative purposes.

From enhancing corrosion resistance to offering a vast palette of colors, the anodized aluminum finish is a versatile and effective solution for numerous applications. The inherent blend of strength, visual appeal, and sustainability makes it an invaluable process in modern manufacturing, delivering parts that not only perform exceptionally but also look outstanding. If you're seeking a professional partner for your surface finishing needs, including high-quality anodizing and bespoke OEM customization, we at SOMI Custom Parts are a leading Chinese manufacturer and supplier of surface treatment equipment ready to bring your vision to life. Feel free to share this guide with your colleagues and leave a comment below with your experiences or questions about anodized aluminum
