What is the Overmolding Process? A Comprehensive Overview

As your guide in the world of advanced manufacturing, I'm here to walk you through the fascinating realm of overmolding, a specialized injection molding technique. As a manufacturer, I intimately understand the critical importance of strategically combining materials to create superior products, and overmolding is a powerful process that allows us to achieve just that.

Overmolding revolves around a core concept: integrating two or more different materials into a single, seamless part. This technique is designed to significantly enhance a product's functionality, improve its durability, and elevate its aesthetics. You can find examples of this process in a wide array of industries, from complex automotive components and critical medical devices to everyday items you use in your home, like soft-grip toothbrushes. Let's delve into the details of what makes the overmolding process so uniquely effective and beneficial for modern product design and manufacturing.

Understanding the Overmolding Process: What It Is and How It Works

To fully appreciate the value of overmolding, it's essential to understand its fundamental principles, the steps involved in its execution, and the materials that make it all possible. This process is more than just joining two pieces; it's a sophisticated method for creating integrated parts with layered properties.

What is the overmolding process?

Overmolding is a multi-step injection molding process used to create a single, integrated part by molding one material over a second material. This technique typically involves a base component, known as the substrate, which is either partially or fully covered by another material, referred to as the overmold. The substrate is often a rigid plastic, but it can also be made of metal, glass, or other materials. The overmold material is frequently a softer, more flexible polymer like a thermoplastic elastomer (TPE), chosen to add specific properties to the final product.

The primary goal of overmolding is to combine the distinct properties of different materials into one seamless component. This can be done to:

• Enhance Grip and Ergonomics: Adding a soft-touch, rubber-like layer to a hard plastic handle (e.g., on power tools or toothbrushes) improves user comfort and provides a secure, non-slip grip.
• Provide Sealing and Water Resistance: Overmolding can create built-in, watertight gaskets for electronic enclosures or other devices, protecting them from moisture and dust.
• Improve Aesthetics: By using materials of different colors and finishes, overmolding can create visually striking products without the need for painting or secondary finishing.
• Dampen Vibration and Absorb Shock: The addition of a soft, elastomeric layer helps protect sensitive components from damage by absorbing impacts and reducing vibration.
• Reduce Assembly Costs: The process can eliminate the need for manual assembly of separate parts, which saves time, reduces labor costs, and minimizes the risk of assembly errors.

The bond between the substrate and the overmold can be achieved through two primary mechanisms: a chemical bond, where the two materials are molecularly compatible and fuse together, or a mechanical bond, where the design includes interlocks or undercuts that physically lock the overmold material onto the substrate.

The step-by-step overmolding process

The overmolding procedure is a sequential manufacturing method that builds upon traditional injection molding. While variations exist, the fundamental steps are consistent and methodical. The most common approach is known as insert overmolding or "pick-and-place" overmolding.

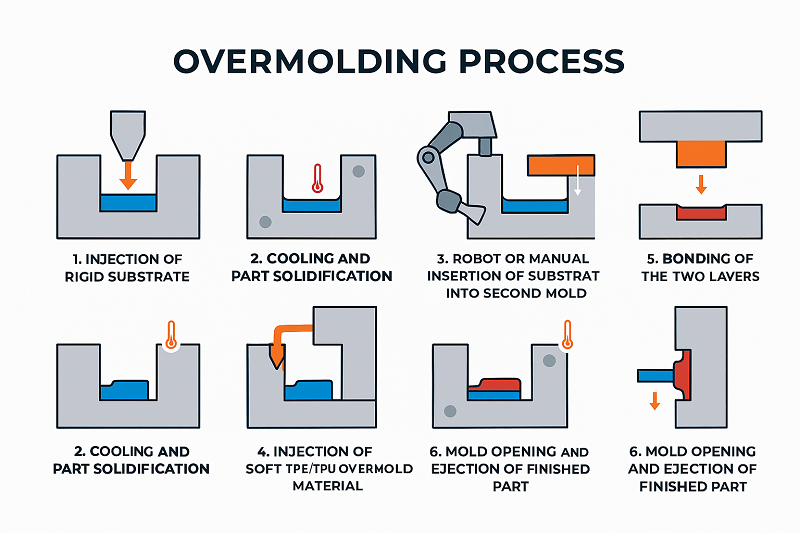

Here is a typical step-by-step breakdown of the process:

1. Create the Substrate: The first step is to manufacture the base part, or substrate. This is typically done using a standard injection molding process to create a rigid plastic component. In some cases, the substrate can also be a CNC machined part, a metal casting, or another pre-existing component.

2. Prepare and Place the Substrate: Once the substrate is molded and has cooled, it is transferred and placed into a second, larger mold cavity. This can be done manually by an operator or automatically using a robotic arm. Before placement, the substrate surface must be clean and dry, as contaminants can interfere with the bonding process. For certain material combinations, the substrate may be preheated to promote better chemical adhesion with the overmold material.

3. Inject the Overmold Material: With the substrate secured inside the second mold, the overmolding material (often a molten TPE or another polymer) is injected into the remaining cavity space. The molten material flows around, onto, or through features in the substrate, filling the void completely. High injection pressures and melt temperatures are often used to ensure a strong bond.

4. Bonding and Cooling: As the overmold material cools and solidifies, it bonds to the substrate. This bonding can be chemical, mechanical, or a combination of both, depending on material compatibility and part design. The entire assembly is allowed to cool within the mold, which is a critical phase for ensuring the integrity of the final part. Longer cooling times may be necessary since the substrate can insulate the overmold material, slowing down heat dissipation.

5. Eject the Final Part: After the part has fully cooled and solidified, the mold opens, and the finished, single-piece overmolded component is ejected. The result is a seamless, multi-material part ready for use or further assembly.

This method, while requiring two separate molds, is highly flexible and is the most common procedure for low- to mid-volume production runs.

Materials used in the overmolding process

Selecting the right materials is arguably the most critical aspect of the overmolding process, as it directly impacts the final part's performance, durability, and cost. The choice depends on achieving a strong bond between the substrate (the base part) and the overmold (the second material).

A crucial rule in material selection is that the substrate material must have a higher melting or glass transition temperature than the overmold material. This ensures that the substrate does not melt, warp, or deform when the hot, molten overmold resin is injected onto it.

The bond between materials can be categorized in two ways:

1. Chemical Bonding: This is the ideal scenario, where the substrate and overmold materials are chemically compatible, allowing their molecules to form a strong, permanent bond at the interface. This eliminates the need for adhesives or mechanical fasteners and results in a very durable part.
2. Mechanical Bonding: When chemically incompatible materials are required for design reasons, a mechanical bond is necessary. This is achieved by designing features like undercuts, holes, or rough surface textures into the substrate, which allow the overmold material to physically lock into place.

Common Material Combinations

The most frequent application of overmolding involves combining a rigid plastic substrate with a soft, flexible thermoplastic elastomer (TPE) or thermoplastic polyurethane (TPU) overmold.

Here is a table outlining common substrate materials and compatible overmolds that tend to form a good chemical bond:

Substrate (Rigid Plastic)	Compatible Overmold Materials (Soft & Flexible)	Bond Quality
ABS (Acrylonitrile Butadiene Styrene)	TPU, TPC, TPV, SBS	Excellent to Good
PBT (Polybutylene Terephthalate)	TPC	Good
PC (Polycarbonate)	TPU, TPC	Excellent
PC/ABS (Polycarbonate/ABS Alloy)	TPU, TPC, TPV	Excellent
PA (Polyamide, Nylon)	TPV, TPE	Good (Often requires drying)
PP (Polypropylene)	PP-based TPVs, SEBS	Excellent to Good
PE (Polyethylene)	PE	Good (Difficult to bond with others)
POM (Acetal, Delrin)	None	Poor (Very difficult to bond chemically)
HDPE (High-Density Polyethylene)	TPE	Fair to Good

Data compiled from various manufacturing and material science sources.

It's important to consult with material suppliers and molding experts, as specific grades of plastics can have very different bonding characteristics. For example, while many TPUs bond well with PC and ABS, some formulations are specifically designed for bonding with nylons (PA). Materials like POM (Acetal) and PE are notoriously difficult to bond with chemically and almost always require a mechanical interlock design for successful overmolding.

The Advantages and Disadvantages of the Overmolding Process

Overmolding is a powerful manufacturing technique, but like any process, it comes with a distinct set of benefits and challenges. Understanding these trade-offs is crucial for determining if it's the right choice for a specific product and production scaling.

Key benefits of the overmolding process

Overmolding is widely adopted across numerous industries because it offers a compelling range of advantages that enhance a product's value from both a functional and financial perspective. These benefits impact everything from user experience and product longevity to manufacturing efficiency.

1. Enhanced Product Performance and Functionality By combining multiple materials, overmolding allows for the creation of parts with layered characteristics that a single material cannot provide. This is the core advantage of the process.

• Improved Ergonomics and Grip: Adding a soft, rubber-like TPE layer over a rigid plastic handle dramatically improves user comfort and creates a non-slip surface. This is essential for hand tools, medical instruments, and consumer electronics.
• Shock and Vibration Damping: The soft overmolded layer can absorb impacts and dampen vibrations, protecting sensitive internal components and improving the user experience for devices that vibrate during use.
• Water and Dust Resistance: Overmolding is an excellent method for creating integrated, high-precision seals and gaskets. This creates a durable barrier against environmental factors, which is critical for outdoor electronics and medical devices.

2. Increased Durability and Longevity The bond created during overmolding, especially a chemical bond, is incredibly strong and permanent. This integration strengthens the overall product structure.

• Stronger than Assembly: By fusing materials at a molecular level, the process eliminates the weak points that can exist with glues, screws, or snap-fits, which can loosen or fail over time.
• Improved Resistance: The outer layer can act as a protective shield, improving the product's resistance to impact, abrasion, and chemical exposure, thereby extending its lifespan.

3. Reduced Manufacturing and Assembly Costs While the initial tooling can be complex, overmolding often leads to significant long-term cost savings.

• Part Consolidation: It combines what would have been multiple individual components into a single part. This reduces the overall part count in a product assembly.
• Elimination of Secondary Operations: The process eliminates the need for manual or automated assembly steps like gluing, fastening, or installing separate gaskets. This saves on labor costs, reduces assembly time, and minimizes the potential for assembly errors. The result is a streamlined production process with shorter lead times.

4. Greater Design Flexibility and Improved Aesthetics Overmolding opens up new possibilities for product designers.

• Complex Geometries: It allows for the creation of intricate, multi-material parts with complex shapes that would be impossible or prohibitively expensive to produce with traditional assembly methods.
• Enhanced Visual Appeal: The ability to combine different colors, textures, and finishes in a single component gives designers the freedom to create products that are more visually appealing and aligned with brand identity. This provides a premium look and feel that can differentiate a product in a competitive market.

5. Enhanced Safety for the End-User The process can directly contribute to making a product safer to use.

• Non-Slip Surfaces: Soft grips reduce the chance of tools or devices slipping during use, preventing accidents.
• Electrical Insulation: Specific materials can be overmolded to insulate components, protecting users from electrical shock.
• Covering Sharp Edges: Overmolding can be used to cover sharp metal or plastic edges with a soft, protective layer, reducing the risk of injury.

Challenges and considerations in the overmolding process

Despite its many advantages, the overmolding process is not without its complexities and potential pitfalls. A successful outcome requires careful planning, precise execution, and a deep understanding of material science and tool design. Ignoring these factors can lead to costly errors and subpar products.

1. Material Compatibility and Adhesion Issues The single biggest challenge in overmolding is ensuring a strong, reliable bond between the substrate and the overmold material.

• Poor Adhesion: If the materials are not chemically compatible, the layers can delaminate or peel apart during use, compromising the product's function and appearance. This requires extensive knowledge of material science to select compatible polymer pairs.
• Surface Contamination: Any residue on the substrate, such as oil, dust, or even fingerprints, can act as a barrier and prevent proper adhesion.
• Thermal Incompatibility: The materials must have compatible thermal properties. If the thermal expansion coefficients are too different, temperature changes can create internal stress, leading to warping or part failure.

2. Higher Tooling and Initial Costs Overmolding is generally more expensive upfront compared to single-shot injection molding.

• Complex Tooling: The process requires at least two molds (one for the substrate and one for the overmold) or a single, highly complex, and expensive two-shot mold. These molds demand high precision to ensure a proper fit and seal around the substrate.
• Longer Cycle Times: Because overmolding is a multi-step process, it inherently has a longer cycle time per part compared to molding a single component. This can increase the cost per part, particularly in high-volume production.

3. Design Constraints and Complexity Designing for overmolding requires careful consideration of several factors beyond that of a single-material part.

• Wall Thickness Uniformity: Both the substrate and the overmold layer should have a relatively uniform wall thickness to prevent issues like sink marks, voids, and warping caused by uneven cooling. A wall thickness of at least 1.5mm is often recommended for the overmold layer to ensure it carries enough heat for a good bond.
• Mechanical Interlocks: When chemical bonding is weak or not possible, the part design must incorporate mechanical features like undercuts or through-holes to lock the materials together. This adds complexity to the tool design.
• Gate Location: The placement of the injection gate is critical to ensure the molten overmold material flows evenly around the substrate without causing it to shift or creating cosmetic defects.

4. Quality Control and Common Defects The multi-step nature of the process introduces more opportunities for defects that require meticulous quality control.

• Flashing: This occurs when the overmold material seeps into unintended areas, typically at the parting line where the mold closes around the substrate. It can happen if the mold fit is imprecise or if injection pressure is too high.
• Short Shots: This is an incomplete filling of the mold cavity, where the overmold material does not fully cover the intended area. It can be caused by low injection pressure, insufficient material, or poor venting in the mold.
• Substrate Damage: High injection pressure or temperature can damage or distort the substrate part, especially if it is not properly supported within the second mold.

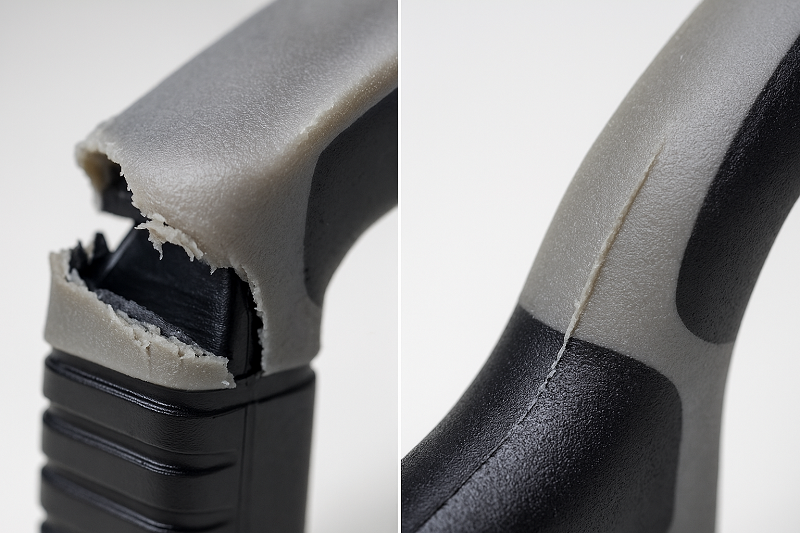

• Delamination: This is the separation of the overmold layer from the substrate, which is the ultimate failure of the bond.

5. Production and Recycling Complexity The operational aspects and end-of-life considerations can also be challenging.

• Process Control: Overmolding requires tight control over numerous variables, including temperatures, pressures, speeds, and timing, making it technically more demanding than standard injection molding.
• Recycling Difficulties: Products made from multiple, permanently bonded materials are inherently more difficult to separate and recycle, which can be a significant drawback from an environmental perspective.

Overmolding Process vs. Two-Shot Injection Molding: A Comparative Look

When discussing multi-material manufacturing, "overmolding" and "two-shot injection molding" (also known as 2K molding or double-shot molding) are often mentioned together. While both processes create a single part from two different materials, they are fundamentally different in their execution, cost, and ideal applications. Understanding these differences is key to selecting the most efficient and cost-effective method for a project.

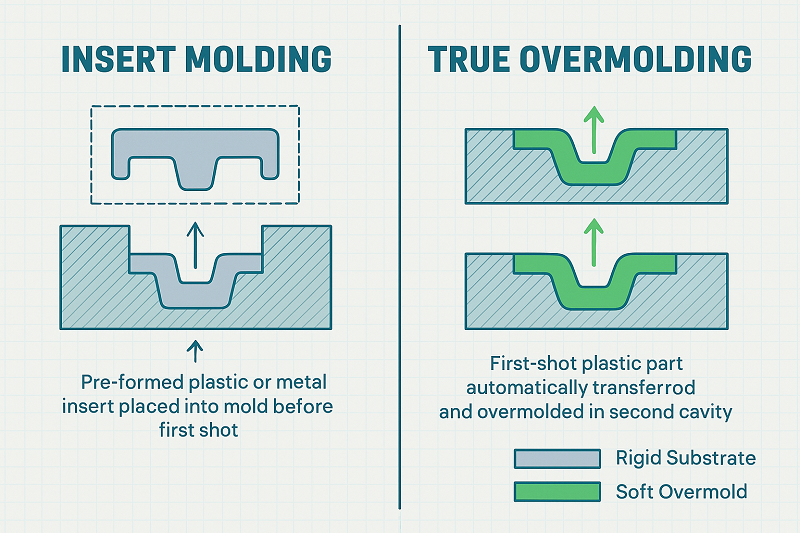

Key differences in process and material application

The primary distinction between standard overmolding (insert molding) and two-shot molding lies in the process flow and the equipment used. This difference directly impacts production speed, labor involvement, and tooling complexity.

Overmolding (Insert Molding)

• Process: This is a two-step, disjointed process.
  1. The substrate (base part) is created in a first injection molding machine using a dedicated mold.
  2. This solid substrate part is then physically moved—either by a human operator or a robot—to a second, different mold.
  3. The second material (the overmold) is injected over the substrate in this second mold.
• Equipment: It can be performed with standard injection molding machines. It requires two separate physical molds.
• Material Application: This process is highly versatile. Because the substrate is fully cooled and solid before being placed in the second mold, it can be made from a wide range of materials, including plastics, metals, or glass. The overmold is then applied on top.

Two-Shot (2K) Injection Molding

• Process: This is a continuous, automated process that occurs within a single molding cycle.
  1. A specialized injection molding machine with two (or more) injection units injects the first material into a complex mold to create the substrate.
  2. The mold then automatically rotates or shifts a core to a second cavity position within the same mold.
  3. The second injection unit shoots the second material over the still-warm substrate.
  4. The entire process happens in one machine without the part being removed.
• Equipment: It requires a specialized and expensive two-shot injection molding machine and a single, highly complex mold with rotating plates or cores.
• Material Application: This process is typically used to combine two different thermoplastic polymers. Since the substrate is still warm and in the mold when the second shot is applied, it facilitates a very strong chemical bond between compatible materials.

Here is a summary table comparing the key process differences:

Feature	Overmolding (Insert Molding)	Two-Shot (2K) Injection Molding
Process Steps	Two separate molding operations	Single, continuous molding cycle
Part Handling	Substrate is physically transferred between molds	Automated transfer within a single mold
Molds Required	Two separate molds	One complex, multi-action mold
Machine Type	Standard injection molding machines	Specialized two-shot machine
Labor	Higher labor cost (if manual transfer)	Highly automated, lower labor cost

Bonding strength and material compatibility in the overmolding process and two-shot injection molding

The bonding mechanism and material compatibility are crucial for the success of both processes, but how they are achieved differs significantly, impacting the final part's integrity.

Bonding Strength

• Two-Shot Molding: This process generally produces a superior and more consistent bond. Because the second material is injected onto the substrate while it is still hot and in a semi-molten state on the mold's surface, the two materials can fuse at a molecular level. This results in a very strong chemical bond, making delamination extremely unlikely. The process is fully automated, which eliminates variables like contamination from handling and ensures consistent timing, further contributing to a reliable bond.

• Overmolding (Insert Molding): The bond strength in overmolding can be more variable. Since the substrate is completely cooled and handled before being placed in the second mold, the opportunity for a strong chemical bond is reduced. The process relies heavily on either selecting materials with excellent inherent adhesion properties or designing mechanical interlocks. If the substrate is contaminated or there's a delay in the process, the bond can be compromised. However, when properly executed with compatible materials, overmolding can still produce a very strong bond. For materials that do not bond chemically (like overmolding plastic onto metal), a mechanical bond is the only option.

Material Compatibility

• Two-Shot Molding: This process has stricter requirements for material compatibility. To achieve the desired strong chemical bond, the two polymers must have similar melting temperatures and chemical properties that allow them to fuse. This limits the palette of material combinations that can be used effectively. The choice is often restricted to specific grades of plastics known to bond well together.

• Overmolding (Insert Molding): This process offers significantly more flexibility in material combinations.

  • Wider Range of Substrates: The substrate can be almost any solid object that can withstand the pressure and temperature of the overmolding injection process, including different types of plastics, metals (like aluminum or steel), glass, and even ceramics.
  • Mechanical Bonding Focus: Because the process doesn't rely solely on chemical compatibility, designers can pair materials that would never bond chemically. By designing undercuts, holes, or rough surface textures, a robust mechanical interlock can be created to hold the parts together, offering great design freedom.

In essence, two-shot molding is optimized for creating the strongest possible chemical bond between two compatible thermoplastics, while the overmolding process provides greater material flexibility, often relying on mechanical bonding when chemical compatibility is not an option.

Cost and production speed considerations for the overmolding process and two-shot injection molding

The decision between overmolding and two-shot molding often comes down to economics, driven by production volume, tooling investment, and cycle time. Each process has a distinct cost structure that makes it suitable for different project scales.

Tooling and Initial Investment Costs

• Overmolding: This process generally has a lower initial tooling cost. While it requires two separate molds, these molds are typically simpler in design than a single two-shot mold. The ability to use standard injection molding machines also keeps the initial equipment investment down. This makes overmolding a more cost-effective option for low- to medium-volume production runs or for prototyping.
• Two-Shot Molding: This process involves a very high initial investment. The specialized two-shot injection molding machine is significantly more expensive than a standard press. The mold itself is extremely complex, incorporating rotating platens or shuttle mechanisms, which drives up its design and manufacturing cost substantially. One medical device company saved $45,000 in tooling costs by opting for overmolding instead of two-shot molding for their new product.

Production Speed and Per-Part Cost

• Overmolding: The production speed is slower, resulting in a higher cost per part. The process involves two distinct molding cycles and the manual or robotic transfer of the substrate between molds. This added cycle time and labor (if manual) increases the cost for each finished component.
• Two-Shot Molding: This process is exceptionally fast and efficient. Since both injection steps occur in a single, automated cycle without removing the part, cycle times are significantly shorter. This high level of automation reduces labor and operational costs dramatically. As production volume increases, the high initial tooling cost is amortized over many thousands or millions of parts, making the cost per part much lower than overmolding. This makes two-shot molding the clear choice for high-volume production.

Here is a cost and speed comparison:

Factor	Overmolding (Insert Molding)	Two-Shot (2K) Injection Molding
Initial Tooling Cost	Lower	Very High
Equipment Cost	Lower (Standard Machines)	High (Specialized Machines)
Production Speed/Cycle Time	Slower (Two separate cycles)	Faster (Single, integrated cycle)
Cost Per Part	Higher	Lower (at high volumes)
Ideal Production Volume	Low to Medium Volume, Prototyping	High Volume

Ultimately, the choice is an economic trade-off. Overmolding is the pragmatic choice when initial capital is a concern or when production volumes are modest. Two-shot molding represents a significant upfront investment that pays off with unmatched efficiency and lower unit costs for mass production.

Applications of the Overmolding Process Across Industries

The versatility of the overmolding process has led to its widespread adoption in nearly every major manufacturing sector. Its ability to add functionality, improve ergonomics, and enhance durability makes it an invaluable tool for creating innovative and high-performance products. From the items we use every day to critical components in high-tech fields, the evidence of overmolding is all around us.

Consumer products benefiting from the overmolding process

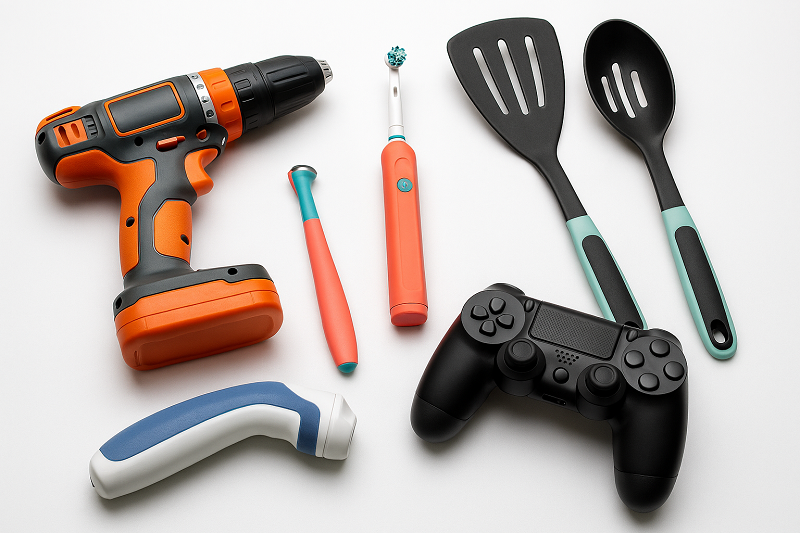

Many of the products we interact with daily owe their user-friendly design and feel to overmolding. This process is key to enhancing the comfort, safety, and aesthetic appeal of a vast range of consumer goods.

• Personal Care Products: This is one of the most classic examples. Toothbrushes, shaving razors, and hairbrushes all feature soft, rubberized grips overmolded onto a rigid plastic handle. This not only makes them more comfortable and less slippery to hold but also allows for vibrant, multi-color designs.
• Hand and Power Tools: The handles of tools like screwdrivers, hammers, pliers, and cordless drills are perfect applications for overmolding. A rigid substrate provides structural strength, while a soft TPE or rubber overmold offers an ergonomic, non-slip grip that absorbs vibration, reducing user fatigue and improving safety.
• Kitchenware and Household Items: Many kitchen utensils, such as spatulas, knives, and vegetable peelers, use overmolded handles for better grip and control. This application also extends to cleaning tools, like squeegees and brush handles, and even soft-touch buttons on household appliances.
• Consumer Electronics: Protective cases for smartphones and tablets are a prime example, where a rigid shell is overmolded with a shock-absorbing TPU layer. This also applies to grips on gaming controllers, remote controls, and the housings for portable speakers and headphones, where the overmold provides durability, a premium feel, and sometimes a watertight seal.
• Sporting Goods and Toys: Overmolding is used to add durable, comfortable grips to products like golf clubs, bicycle handlebars, and fishing rods. In toys, it can be used to add soft, flexible features to rigid plastic parts, making them safer and more engaging for children.

The overmolding process in automotive and medical devices

In industries where precision, reliability, and safety are paramount, overmolding is not just an aesthetic choice—it's a critical manufacturing process. Both the automotive and medical sectors rely heavily on overmolding to produce high-performance components.

Overmolding in the Automotive Industry

The automotive sector uses overmolding extensively to create parts that are durable, high-performing, and aesthetically pleasing. Key applications include:

• Interior Components: Many parts of a car's interior are overmolded to improve ergonomics and feel. This includes soft-touch steering wheels, gear shift knobs, armrests, and buttons on the dashboard or control consoles.
• Seals and Gaskets: Overmolding is used to create integrated seals directly onto components like engine covers or electrical connector housings. This provides superior protection against moisture, dust, and chemicals, which is crucial for the reliability of under-the-hood electronics.
• Exterior Parts: Components like body side moldings, bumper trims, and window encapsulations benefit from the process. It allows for multi-color designs and can combine rigid structural elements with flexible, impact-absorbing materials.
• Wiring Harnesses and Sensors: The process is used to encapsulate and protect sensitive electronics. By overmolding connectors, switches, and sensors, manufacturers can seal them from environmental factors and provide strain relief for cables, significantly increasing their durability.

Overmolding in Medical Devices

In the medical field, hygiene, biocompatibility, and ergonomics are non-negotiable. Overmolding is a key enabling technology for producing devices that meet these strict requirements.

• Surgical Instruments: The handles of scalpels, forceps, and other surgical tools are often overmolded with medical-grade silicone or TPE. This provides surgeons with a secure, comfortable, and non-slip grip, which is critical for precision and reducing fatigue during long procedures.
• Hygiene and Sterilization: The seamless bond created by overmolding eliminates cracks and crevices where bacteria and other microorganisms could accumulate. This makes the devices easier to clean and sterilize, which is essential for infection control.
• Patient Comfort and Safety: For devices that come into direct contact with patients, such as wearable monitors, breathing masks, and probes, overmolding allows for the use of soft, biocompatible materials that reduce the risk of allergic reactions or tissue irritation.
• Device Housings and Catheters: Overmolding is used to create durable, sealed housings for handheld diagnostic equipment like glucose monitors and thermometers. It is also used in the construction of complex catheters and other flexible medical tubes, often providing a soft tip or a rigid connector hub.
• Implantable Devices: For some long-term implants, overmolding with biocompatible polymers can be used to encapsulate components, ensuring they are durable and elicit minimal reaction from the body.

Specialized overmolding processes: TPU overmolding of copper parts

A highly specialized and valuable application of overmolding involves the bonding of Thermoplastic Polyurethane (TPU) onto metal components, particularly copper. This process is critical in industries like electronics, automotive (especially for electric vehicles), and renewable energy, where the combination of electrical conductivity (from copper) and the protective qualities of TPU is required.

Why Overmold TPU on Copper?

Copper is an excellent conductor of electricity and heat, making it essential for electrical components. However, it is also relatively soft, susceptible to oxidation, and can create short circuits if left exposed. TPU, a versatile elastomer, offers a solution to these vulnerabilities. The key benefits of overmolding copper with TPU include:

• Electrical Insulation: TPU is an excellent dielectric material, meaning it does not conduct electricity. Encapsulating copper busbars, connectors, or wires with TPU prevents short circuits, protects against electric shock, and ensures the safe operation of electronic assemblies.
• Mechanical Protection and Durability: TPU provides a robust, durable layer that protects the underlying copper from physical damage, including impacts, abrasion, and vibration. This is crucial in high-vibration environments like automotive applications.
• Environmental Sealing: The overmolding process creates a seamless, watertight, and dust-tight seal around the copper part. This protects it from moisture, chemicals, and other environmental contaminants that could cause corrosion or degradation over time.
• Strain Relief: For flexible cables or wire terminals, overmolding TPU at the connection point provides critical strain relief, preventing the copper wires from breaking due to repeated bending or stress.
• Structural Integrity: The TPU overmold can add rigidity and structure to an otherwise flexible copper component, or it can be designed to hold multiple copper components in a fixed position, simplifying assembly.

The Process and Its Challenges

Successfully overmolding TPU onto copper requires overcoming the inherent difficulty of bonding plastic to metal. Unlike bonding two compatible plastics, there is no natural chemical adhesion between TPU and copper. Therefore, the process relies heavily on achieving a strong bond through other means:

1. Surface Preparation: This is the most critical step. The copper surface must be perfectly clean and properly prepared to promote adhesion. This can involve degreasing to remove oils, followed by mechanical or chemical treatments. Mechanical abrasion (like sandblasting) creates a rougher surface for the TPU to grip, while chemical treatments, such as applying a primer or using a plasma activation process, can modify the surface energy of the copper to make it more receptive to bonding.

2. Mechanical Interlocks: Part design is key. To ensure the TPU cannot be pulled off the copper, designers incorporate mechanical interlocks. This can include features like through-holes, grooves, knurling, or undercuts in the copper part that the molten TPU flows into and physically locks onto.

3. Process Control: Precise control of the injection molding parameters is essential. The temperature of the molten TPU must be hot enough to flow properly and wet the surface of the copper part, but not so hot that it causes thermal stress. The copper insert may also be pre-heated to a specific temperature to improve the bond quality.

Applications

This specialized process is vital for:

• Electric Vehicle (EV) Components: Overmolding is used for busbars in battery packs, charging connectors, and high-voltage wiring harnesses to provide insulation and protection.
• Electronics: Encapsulating PCB sections, wire terminals, and connectors to make them waterproof and durable.
• Industrial Equipment: Creating robust electrical components that can withstand harsh industrial environments.

By combining the conductive properties of copper with the protective, flexible, and insulating characteristics of TPU, this overmolding technique enables the creation of highly reliable and durable electromechanical components.

Conclusion

From enhancing the durability and comfort of everyday products to enabling the creation of mission-critical components in the automotive and medical fields, the overmolding process offers a remarkably versatile solution to a myriad of product development challenges. Its unique ability to form a strong, seamless bond between dissimilar materials opens up a world of possibilities for creating innovative, functional, and aesthetically appealing designs. By layering materials, we can achieve properties that no single material could provide on its own.

Understanding the intricacies of the overmolding process—including its step-by-step execution, material compatibility requirements, and key design principles—allows us as manufacturers and designers to make informed decisions for our projects. It empowers us to strike the right balance between design flexibility, material performance, and overall cost-effectiveness. Whether the goal is to improve the grip on a tool, provide a protective seal for sensitive electronics, or simply make a product look and feel better, the overmolding process is a proven and reliable technique. At SOMI Custom Parts, we are a professional Chinese manufacturer and supplier of injection molded and overmolded parts. We specialize in leveraging this technology and also provide OEM product customization services to bring our clients' most ambitious designs to life.

We hope this comprehensive overview has shed light on the power and potential of overmolding. If you found this article helpful, please consider sharing it with your colleagues. What are your experiences with overmolding, or what future applications do you envision for this technology? We encourage you to share your thoughts and join the conversation.
