Understanding the Liquid Silicone Molding Process: A Versatile Solution Explained
As an expert in manufacturing, I know the liquid silicone molding process is a highly versatile and efficient method for creating precise and durable silicone components. This process, also known as Liquid Injection Molding (LIM), has become a cornerstone in various industries due to its ability to produce high-quality parts with exceptional characteristics. Compared to traditional methods like compression molding, the liquid silicone molding process stands out for its accuracy, speed, and cost-effectiveness in many applications.
Liquid silicone rubber (LSR) is a key material in this advanced process, offering superior properties such as excellent resistance to extreme temperatures, chemicals, and aging. It's an ideal choice for complex geometries and rigorous conditions. Join me as we explore the intricacies of the liquid silicone molding process, its significant advantages, and its widespread applications.
What is the Liquid Silicone Molding Process?
The liquid silicone molding process is a sophisticated manufacturing technique that utilizes liquid silicone rubber (LSR) to produce a wide variety of parts and products. It involves injecting a two-part LSR compound into a heated mold, where it cures and solidifies into the final component. This method is renowned for its ability to create complex, high-precision parts with consistent quality, making it a preferred choice in demanding industries like medical, automotive, and consumer electronics. The core of this process lies in the unique nature of its primary material, Liquid Silicone Rubber.
Defining Liquid Silicone Rubber (LSR)

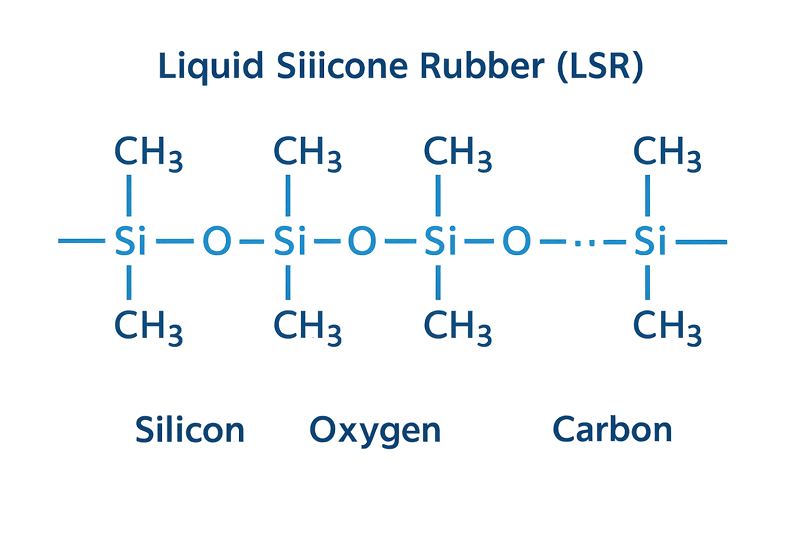

Liquid Silicone Rubber (LSR) is a high-purity, two-part platinum-cured elastomer. Chemically, it is an inorganic polymer composed of a silicon and oxygen backbone (a siloxane chain), which distinguishes it from organic-based rubbers. This unique chemical structure gives LSR its remarkable properties. Unlike high-consistency rubber (HCR) which is processed as a solid, LSR is supplied as a two-component liquid (typically referred to as 'A' and 'B' components) that can be pumped and mixed before being injected into a mold to cure.
The 'A' component usually contains a platinum catalyst, while the 'B' component contains a cross-linker and an inhibitor. When these two components are mixed in a 1:1 ratio, the platinum catalyst initiates the curing (vulcanization) process. The material's low viscosity allows it to flow easily, filling intricate and detailed mold cavities to create parts with exceptional detail and precision. This "flowable" nature is a key differentiator from other types of silicone and is fundamental to the Liquid Silicone Rubber Molding process.
Key Properties of LSR
The unique siloxane chemistry of LSR provides a combination of physical and chemical properties that make it an incredibly versatile material for a vast range of applications. Its reliability under harsh conditions is one of the main reasons engineers and designers choose it for critical components.
Here are some of the most important properties of Liquid Silicone Rubber:
- Wide Temperature Resistance: LSR parts perform exceptionally well across a broad temperature spectrum. They maintain their flexibility and mechanical properties in temperatures ranging from as low as -65°C up to 250°C (-85°F to 482°F). This makes LSR ideal for applications exposed to extreme heat or cold, such as automotive under-the-hood components or outdoor electrical enclosures.
- Biocompatibility and Hypoallergenic Nature: LSR exhibits superior compatibility with human tissue and body fluids. It is odorless, tasteless, and resistant to bacterial growth, which is why it is extensively used for medical devices that come into contact with the human body, such as respiratory masks, implantable devices, and infant care products. Many grades are certified to meet stringent FDA and ISO 10993 standards.
- Excellent Electrical Properties: LSR is a fantastic electrical insulator, making it a prime material for protecting sensitive electronic components. Its high dielectric strength and resistance to corona discharge are valuable in high-voltage applications. At the same time, it can be formulated with conductive additives to create parts like keypad contacts.
- Chemical Inertness and Durability: The material is highly resistant to water, oxidation, UV radiation, and a variety of chemicals, including acids and bases. This durability ensures long-term stability and performance, even when exposed to harsh environmental conditions or frequent cleaning and sterilization cycles.
- High Precision and Design Freedom: The low viscosity of liquid silicone rubber allows it to be molded into highly complex geometries, thin walls, and micro-sized parts with tight tolerances. This provides designers with immense freedom to create intricate components that would be difficult or impossible to produce with other materials.
- Optical Clarity and Colorability: Standard LSR is naturally translucent, offering high optical clarity and resistance to yellowing. This transparency allows it to be easily pigmented to match virtually any color requirement, including a wide array of human skin tones for prosthetic and medical applications.
The following table summarizes these key properties and their benefits in various applications:
| Property | Description | Common Applications |
|---|---|---|
| Temperature Resistance | Maintains properties from approx. -65°C to 250°C. | Automotive engine seals, bake ware, outdoor electrical housings. |
| Biocompatibility | Non-toxic, hypoallergenic, and resistant to bacteria growth. | Medical implants, baby bottle nipples, food-contact items. |
| Electrical Insulation | High dielectric strength and resistance to electrical stress. | Wire seals, connectors, EV battery components. |
| Chemical Resistance | Resists water, oxidation, and many chemicals. | Seals and gaskets in industrial equipment, outdoor sensors. |
| Flexibility & Low Compression Set | Excellent elasticity and ability to return to original shape after compression. | Gaskets, seals, soft-touch buttons, diaphragms. |
| Transparency & Colorability | Can be perfectly clear or pigmented to any color. | LED lenses, custom-colored consumer goods, medical tubing. |

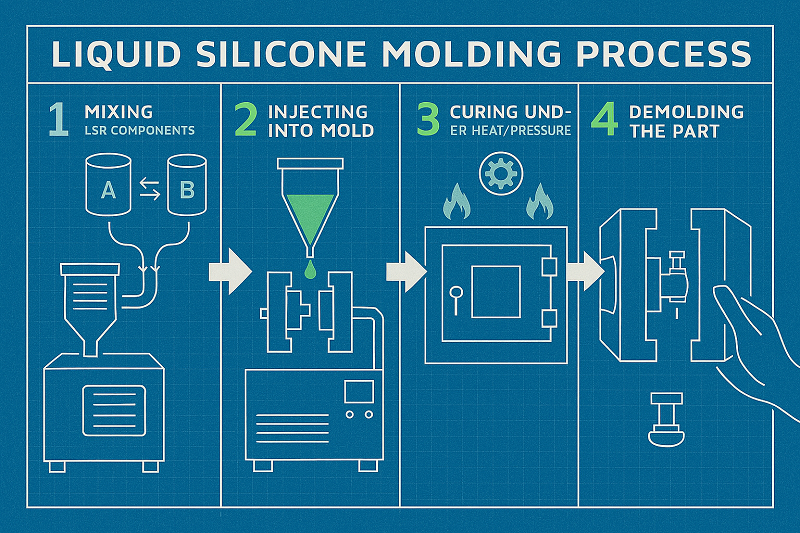

The Step-by-Step Liquid Silicone Molding Process
The liquid silicone molding process, also known as Liquid Injection Molding (LIM), is a highly automated and precise manufacturing method. It is designed to efficiently produce high-quality silicone parts with remarkable consistency. The entire process, from raw material to finished product, involves several integrated steps that leverage the unique properties of LSR.
Here’s a detailed breakdown of how the process works:
Material Preparation and Pumping: The process begins with the two liquid components of LSR, Part A (containing the platinum catalyst) and Part B (with the cross-linker), stored in separate containers. A specialized pumping system simultaneously draws both components at a precise 1:1 ratio. If color is required, a third stream of color pigment can be added at this stage.
Mixing: The A and B components, along with any colorant, are fed into a static mixer. This device contains a series of helical elements that repeatedly divide and recombine the material streams. This action ensures a complete and homogenous mixture of the components, which is critical for uniform curing and consistent material properties in the final part. The mixture remains at a low temperature to prevent premature curing.
Injection into the Mold: The now-mixed, but still uncured, LSR is injected into the closed mold cavity. Unlike plastic injection molding where the mold is cooled, the liquid silicone molding process uses a heated mold, typically between 150°C and 200°C (300°F and 400°F). The injection nozzle of the molding machine pushes the material through a sprue and runner system into the mold cavities. The low viscosity of the LSR allows it to fill even the most intricate features of the mold with relatively low injection pressure.
Curing (Vulcanization): Once the cold LSR enters the hot mold, the heat initiates a rapid chemical reaction (curing or vulcanization). The platinum catalyst causes the polymer chains to cross-link, transforming the liquid material into a solid, stable, and elastic rubber part. This curing process is very fast, often taking just a few seconds to a minute, depending on the part size and material grade.
Demolding and Ejection: After the curing cycle is complete, the mold opens, and the finished silicone parts are ejected. This can be done manually by an operator or, more commonly in high-volume production, automatically using ejector pins or robotic arms. The parts are now fully formed and retain their final shape and properties.
Post-Curing (Optional): In some applications, particularly for medical or food-grade products, a post-curing step may be required. The molded parts are placed in an oven for a period (e.g., a few hours) to remove any residual volatile byproducts from the curing process and to further stabilize the material's mechanical properties. This ensures the highest level of purity and performance for critical applications.
The entire process is a closed-loop system, minimizing material contamination and waste, while the high level of automation ensures tight process control and part-to-part consistency.
## Advantages of the Liquid Silicone Molding Process
The liquid silicone molding process offers a host of advantages that make it a superior choice for manufacturing high-performance components across many industries. Its unique combination of material properties and advanced processing technology delivers exceptional efficiency, unparalleled precision, and significant cost benefits, especially in high-volume production. This has led to its widespread adoption for creating everything from complex medical devices to durable automotive parts.
Efficiency and Automation in the Liquid Silicone Molding Process

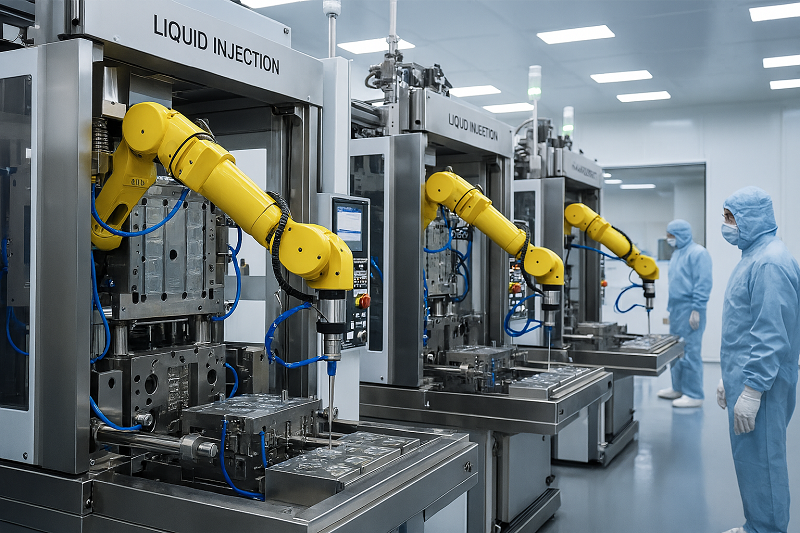

One of the most significant benefits of liquid silicone molding is its incredible efficiency, largely driven by automation and rapid cycle times.
- Fast Curing and Short Cycle Times: The platinum-cured chemistry of LSR allows for very rapid vulcanization once the material is heated in the mold. Cycle times for the liquid silicone molding process are remarkably short, often measured in seconds rather than the minutes required for traditional compression molding or other thermoset processes. This speed dramatically increases production throughput, allowing manufacturers to produce large quantities of parts in a shorter amount of time.
- High Degree of Automation: The entire process is perfectly suited for full automation. From the precise metered pumping and mixing of the two-part LSR to the injection, curing, and part ejection, the system can run continuously with minimal human intervention. A single operator can often oversee multiple machines, significantly reducing labor costs and minimizing the potential for human error. Automated systems can handle tasks like material mixing, mold filling, and part ejection, streamlining production and reducing the risk of mistakes.
- Closed-Loop System: The process utilizes a closed-loop system, where the raw material is sealed from the environment from its containers all the way to the mold cavity. This prevents contamination from dust and other impurities, which is crucial for manufacturing clean and hygienic parts for medical and food-grade applications. It also enhances safety by preventing operators from having to handle raw materials directly.
Precision and Quality in the Liquid Silicone Molding Process
When it comes to producing high-quality, complex parts with tight tolerances, the liquid silicone molding process is second to none. This precision is a result of both the material's properties and the advanced nature of the injection process.
- Exceptional Detail and Complex Geometries: LSR has a very low viscosity, meaning it flows easily. This "flowability" allows the material to fill even the most intricate, complex, and thin-walled sections of a mold cavity under low injection pressure. This makes it possible to produce extremely detailed parts and complex geometries that would be challenging to achieve with other molding methods.
- High Repeatability and Consistency: The automated, computer-controlled nature of the liquid silicone molding process ensures exceptional part-to-part consistency. Every parameter—from mixing ratios and shot size to temperature and pressure—is precisely monitored and controlled. This high level of repeatability is critical for high-volume production runs where every part must meet the exact same stringent quality standards.
- Flashless Molding: High-quality mold design and the precise nature of the injection process allow for "flashless" or "near-flashless" part production. Flash is the excess material that seeps out of the mold cavity at the parting line. By minimizing or eliminating flash, the process reduces the need for secondary trimming operations, which saves time, reduces labor, and minimizes material waste.
Cost-Effectiveness and Waste Reduction in the Liquid Silicone Molding Process
While the initial investment in tooling and machinery for liquid silicone molding can be higher than for other methods, it often proves to be the most cost-effective solution for medium to high-volume production runs.
- Minimal Material Waste: The precision of the injection process and the use of advanced runner systems, such as cold runner technology, significantly reduce material waste. Cold runner systems keep the LSR cool in the runner channels, preventing it from curing until it enters the hot mold cavity. This allows the material in the runner to be used in the next shot instead of being discarded, utilizing nearly 100% of the raw material.
- Reduced Labor Costs: As mentioned, the high level of automation drastically cuts down on the need for manual labor. The reduction in secondary operations like deburring and trimming further contributes to lower overall labor costs per part. Manufacturers can realize these savings with long production runs that require minimal labor.
- Long-Term Durability and Reliability: LSR parts are known for their exceptional durability, longevity, and resistance to environmental factors. This high quality reduces the likelihood of part failure, warranty claims, and the need for frequent replacements, contributing to a lower total cost of ownership for the end-user.
- Economical for High-Volume Production: The combination of fast cycle times, reduced labor, and minimal waste makes the liquid silicone molding process extremely economical for producing parts in large quantities. Even for runs as low as 10,000-15,000 parts, the process can be highly cost-effective. These factors collectively enable manufacturers to produce complex silicone parts efficiently and affordably in high volumes.## The Liquid Silicone Molding Process Versus Compression Molding
When deciding on a manufacturing process for silicone parts, the choice often comes down to liquid silicone molding (also known as liquid injection molding or LIM) and compression molding. While both are effective methods for creating silicone components, they differ significantly in their process, material form, efficiency, and ideal applications. Understanding these differences is key to selecting the right method for a specific project.

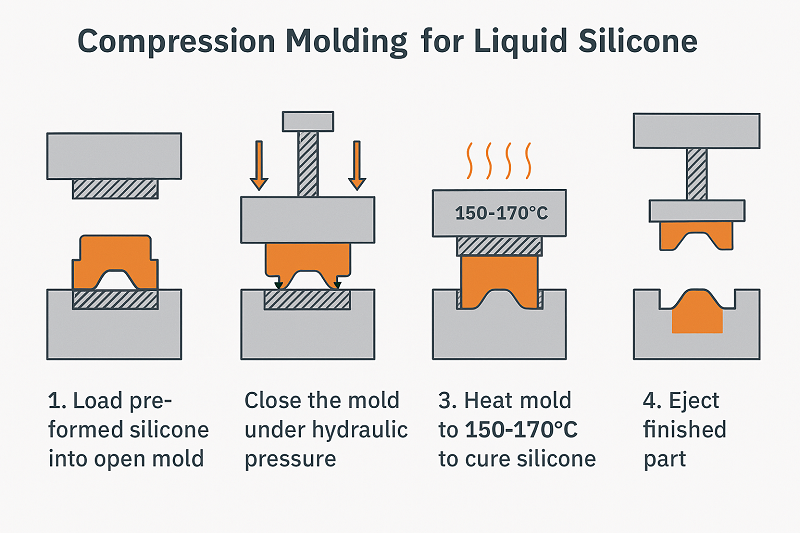

Understanding Compression Molding
Compression molding is one of the oldest and most established methods for molding rubber and silicone parts. The process is relatively straightforward but is generally more manual and slower than liquid silicone molding.
The step-by-step process for silicone compression molding is as follows:
- Material Preparation: The process begins with a solid, high-consistency rubber (HCR) or silicone compound. This material, which has a consistency similar to putty or dough, is pre-measured and often pre-formed into "slugs" of a specific weight and shape.
- Loading the Mold: An operator manually places the pre-formed silicone slug into the open, heated cavity of a mold.
- Compression and Curing: The mold is then closed, and a press applies immense pressure (compression) to the two halves of the mold. This pressure forces the silicone material to flow and fill the entire mold cavity. The combination of heat (typically 150-200°C) and pressure is maintained for a set period, activating a catalyst within the material and causing it to cure, or vulcanize.
- Demolding and Deflashing: After the curing cycle is complete (which can take several minutes), the press is opened, and the part is manually removed from the mold. Because excess material often squeezes out at the mold's parting lines, compression molded parts almost always have significant flash that must be trimmed in a secondary operation.
This method is well-suited for low to medium production volumes, larger and simpler part geometries, and applications where the initial tooling cost needs to be kept low.
Why the Liquid Silicone Molding Process Often Excels
For many modern manufacturing needs, especially those requiring high precision, complex geometries, and large production volumes, the liquid silicone molding process offers distinct advantages over compression molding.
- Precision and Complexity: The low viscosity of liquid silicone rubber allows it to fill intricate and complex mold details with exceptional accuracy. Compression molding, which uses a thick, solid material, struggles to replicate fine details and can lead to voids or incomplete fills in complex parts. Therefore, LIM is superior for producing parts with tight tolerances and sophisticated designs.
- Cycle Time and Efficiency: Liquid silicone molding is a much faster process. The automated injection and rapid platinum-based curing lead to cycle times measured in seconds, whereas compression molding cycles take several minutes. This drastic difference in speed makes LIM far more efficient and cost-effective for high-volume production.
- Material Waste and Quality: LIM is a "flashless" or low-flash process, meaning very little material is wasted and secondary trimming is often unnecessary. Compression molding inherently creates significant flash, which must be removed, adding labor costs and wasting material. Additionally, the closed-loop, automated nature of LIM prevents material contamination and ensures higher part-to-part consistency.
- Automation and Labor Costs: The high degree of automation in the liquid silicone molding process significantly reduces the need for manual labor, lowering long-term production costs. Compression molding is a labor-intensive process, requiring operators to manually load material and demold parts for every cycle.
The following table provides a direct comparison of the key differences between the two processes:
| Feature | Liquid Silicone Molding (LIM) | Compression Molding |
|---|---|---|
| Material Form | Two-part liquid silicone rubber (LSR) | High-consistency solid rubber (HCR) |
| Process | Automated injection into a closed mold | Manual placement into an open mold, then compressed |
| Cycle Time | Very fast (seconds to a minute) | Slow (several minutes) |
| Precision | Very high; ideal for complex parts and tight tolerances | Lower; best for simple geometries |
| Flash | Minimal to none ("flashless") | Significant flash requiring trimming |
| Waste | Very low, especially with cold runners | Higher due to flash and material prep |
| Automation | Fully automatable process | Labor-intensive, manual process |
| Tooling Cost | Higher initial cost | Lower initial cost |
| Best For | High-volume production, complex parts, medical applications | Low to medium volumes, large and simple parts, prototypes |
In summary, while compression molding remains a viable and cost-effective option for certain applications, the liquid silicone molding process excels in areas of precision, efficiency, quality, and automation, making it the preferred choice for a growing number of demanding manufacturing projects.## Versatile Applications of the Liquid Silicone Molding Process
The unique combination of liquid silicone rubber's material properties and the precision of the injection molding process has made it an indispensable manufacturing technique across a diverse range of industries. Its ability to produce durable, high-performance parts that can withstand extreme conditions and meet stringent purity standards allows for innovation in countless applications.
Liquid Silicone Molding in Medical and Healthcare
The medical industry heavily relies on the liquid silicone molding process due to LSR's outstanding biocompatibility, chemical resistance, and ability to be sterilized. Because the material is non-toxic, hypoallergenic, and does not support microbial growth, it is a perfect choice for devices that come into contact with the human body.
Key applications in this sector include:
- Medical Device Components: LSR is used to manufacture a wide variety of components such as seals, gaskets, O-rings, and valves for diagnostic and surgical equipment. Its flexibility and durability are crucial for parts like syringe stoppers, catheter components, and fluid management systems.
- Implantable Devices: Due to its high purity and long-term stability within the body, medical-grade LSR is a preferred material for long-term implants. Examples include components for pacemakers, cochlear implants, and artificial heart valves.
- Respiratory and Patient Care: The soft, flexible, and hypoallergenic nature of LSR makes it ideal for respiratory masks, nebulizer components, and tubing. Its ability to form a gentle yet effective seal is critical for patient comfort and device performance.
- Wearable Medical Technology: The process is used to create components for wearable health monitoring devices, such as glucose monitors and ECG trackers, where skin contact and flexibility are essential.
Automotive and Electronics Applications of the Liquid Silicone Molding Process
In the automotive and electronics industries, components are often exposed to harsh environments, including extreme temperatures, moisture, and chemicals. The liquid silicone molding process produces parts that deliver reliable performance under these demanding conditions.
- Automotive Applications: LSR’s excellent resistance to high temperatures and automotive fluids makes it ideal for under-the-hood applications. Common parts include wire harness seals, connector gaskets, vibration-dampening grommets, and seals for lighting enclosures. Its use in electric vehicles (EVs) is also growing for battery seals and high-voltage connector insulation.
- Electronics Applications: The superior electrical insulation properties of LSR are crucial for protecting sensitive electronic components. It is used to manufacture weatherproof seals for outdoor devices, protective covers, flexible keypads, and gaskets that prevent moisture and dust ingress.
Overmolding with the Liquid Silicone Molding Process
Overmolding is an advanced application of the liquid silicone molding process where LSR is molded directly onto a substrate made of another material, such as plastic or metal. This creates a single, integrated component with a strong chemical and mechanical bond between the materials.
The overmolding process typically involves two steps:
- A pre-fabricated substrate (e.g., a rigid plastic handle or a metal insert) is placed into the mold.
- Liquid silicone rubber is then injected into the mold, flowing over and around the substrate and curing to form a permanent bond.
This technique offers several key benefits:
- Enhanced Functionality: It combines the properties of two different materials, such as the rigidity of a plastic and the soft, tactile feel of silicone. This is commonly used for creating ergonomic, non-slip grips for handheld devices, surgical tools, and consumer products.
- Waterproof Sealing: Overmolding is an excellent way to create a durable, waterproof seal between components, eliminating the need for separate gaskets and manual assembly.
- Improved Durability: The process creates a robust bond that is often stronger than what can be achieved with adhesives, improving the overall durability and longevity of the final product. Overmolding enhances product durability and provides waterproofing.
Common applications for LSR overmolding include medical instruments with soft-touch grips, waterproof electronic enclosures, and automotive components that require a flexible seal integrated with a rigid frame.## Considerations and Potential Limitations of the Liquid Silicone Molding Process
While the liquid silicone molding process offers a wealth of benefits, it's also important to acknowledge its considerations and potential limitations. Understanding these factors is crucial for determining if it is the right and most economical choice for a particular project. Making an informed decision involves weighing the advanced capabilities of the process against its associated costs and design requirements.
Material and Equipment Costs in the Liquid Silicone Molding Process
One of the primary considerations for manufacturers is the initial investment required for liquid silicone molding. Both the material and the machinery come at a premium compared to some other molding methods.
- Higher Raw Material Cost: Liquid silicone rubber is a high-performance, high-purity material, and its price reflects that. General-purpose LSR can cost between $10 to $20 per kilogram, while specialized grades, such as those for medical use, can be significantly more expensive, ranging from $25 to $40 per kilogram or higher. This is often more costly than many common thermoplastics or other rubber compounds.
- Significant Tooling Investment: The molds used for liquid silicone injection molding must be fabricated with very high precision to handle the low-viscosity material and prevent flash. These molds are typically made from high-strength, durable steel and often incorporate complex features like cold runner systems. The initial cost for a high-precision, multi-cavity LSR mold can range from $20,000 to over $100,000, depending on its complexity and the number of cavities. This is a substantial upfront investment compared to the simpler, less expensive molds used for compression molding.
- Specialized Machinery: The process requires a specialized liquid injection molding machine equipped with a dosing unit to precisely mix the two-part LSR and an injection system designed for thermoset materials. These machines represent a higher capital investment than standard thermoplastic presses or compression molding presses, with prices for new machines ranging from $5,000 for basic units to over $650,000 for industrial-scale systems.
Although these upfront costs are high, they are often offset in high-volume production by increased efficiency, lower labor costs, and minimal material waste.
Design Complexities and Color Options in the Liquid Silicone Molding Process
While the process allows for great design freedom, there are certain complexities and considerations that designers and engineers must keep in mind.
- Mold Design is Critical: The success of an LSR part heavily depends on the quality of the mold. The design must account for material flow, proper venting to avoid trapped air, and gate locations to ensure the cavity fills evenly. The material is also abrasive (due to its silica content), so molds require special hardened steel to ensure a long lifespan.
- Undercuts and Demolding: While LSR's flexibility allows for parts with undercuts to be manually removed from the mold, this can add to cycle time and labor. For automated processes, complex undercuts may require intricate and costly mechanical tooling actions to release the part without tearing it.
- Limited Color Options and Changes: Standard LSR is translucent, which allows it to be pigmented to a wide range of colors by adding a third stream of color paste during the mixing process. However, the selection of standard colors may be more limited compared to thermoplastics. Furthermore, changing colors in a liquid silicone molding process is more involved and time-consuming than in thermoplastic molding. The entire dosing and mixing system needs to be thoroughly cleaned to prevent color contamination, which can lead to machine downtime and increased costs.
By carefully considering these factors, manufacturers can make strategic decisions about when and how to leverage the powerful capabilities of the liquid silicone molding process to achieve optimal results.
Conclusion
The liquid silicone molding process stands as a testament to advanced manufacturing, offering unparalleled precision, efficiency, and versatility for a vast array of applications. Its ability to create durable, high-quality, and complex parts efficiently makes it an invaluable technique across diverse industries. From life-saving medical devices to robust automotive components and intricate electronics, the benefits of using liquid silicone rubber are clear.
By understanding the nuances of how the liquid silicone molding process works, its benefits over other methods like compression molding, and its wide-ranging uses, we can appreciate its significant impact. For those seeking expert solutions in this field, SOMI Custom Parts is a professional manufacturer and supplier of liquid silicone rubber injection molded parts in China, offering OEM and custom services to meet specific project needs. Embracing this technology allows manufacturers to push the boundaries of design and create superior products that meet the demands of the modern world.
